深圳市优立信科技有限公司

HVR1265数字电视卡

ATSC数字电视卡

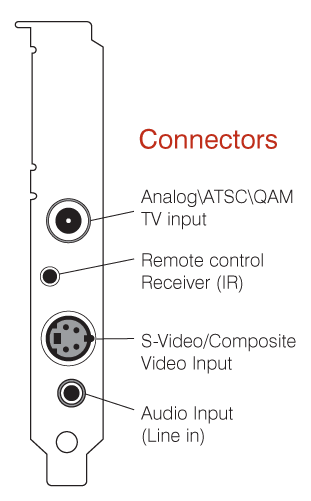

支持复合视频、S端子接口

兼容PCIex1~16接口

支持Win7/8/10 64位

WinTV-HVR-1265 Overview

在电脑上收看电视节目

  • 观看,暂停 录制 模拟和数字电视节目,最高支持1080i分辨率. 支持杜比数字音效.
  • 支持有线模拟电视以及数字电视节目.
  • 支持地面数字电视信号ATSC.
  • Watch TV full screen or in a window.
  • Remote control included.
example1
WinTV-HVR-1265
model 1196
click to enlarge

Record your favorite TV programs

  • Record analog or digital TV shows to your computer’s hard drive with one click.
  • Use WinTV-Scheduler as a personal video recorder to record your TV shows automatically.

Supports the following TV formats:
NTSC / PAL Analog TV, ATSC Digital TV and Clear QAM Digital Cable TV

  • Combination analog\digital TV tuner on board: a 125 channel cable-ready TV tuner plus HDTV tuner for clear QAM and ATSC TV reception.
  • Compatible with Windows 10, 8,8.1, 7, Windows Vista and Windows Media Center.
TV Standards:

NTSC / PAL is the analog cable TV standard.

ATSC is the over-the-air digital HDTV standard for North America and typically requires an antenna for reception.

Clear QAM digital cable allows users to watch unencrypted HDTV stations from their cable TV provider without a set-top box.

Analog TV recordings typically consume 1.5GB of disk space per hour using Hauppauge’s SoftPVR. High Definition TV recordings typically consume 5GB of disk space per hour.

Notes

  • For analog cable TV reception, you need an analog cable TV connection. If you have a digital cable set-top box or a satellite box, the WinTV-HVR-1265 can connect via either channel 3, Composite or S-Video inputs.
  • For ATSC over-the-air digital TV reception, a high-gain antenna is recommended. To check the ATSC TV broadcasts in your area, go to TitanTV.com or Antennaweb.org and enter your postal code.
    Note: depending on the strength of your antenna, you might not be able to receive all broadcasts listed at TitanTV.
  • Clear QAM digital cable TV is not available with all cable TV operators in the U.S. Please check with your local cable TV operator for the availability of clear QAM.
  • To use the WinTV-HVR-1265 for TV with the Windows Media Center application, a Media Center certified DVD or MPEG-2 software decoder should be standard in your Media Center PC. If you are building a Media Center PC, check Microsoft’s website for a list of Media Center certified DVD decoders.
    Note: the enclosed remote control is not MCE certified and does not replace the Media Center remote control.
  • To watch clear QAM channels, you should use either the Hauppauge WinTV v6 or v7 or v8 or v10 application or Windows Media Center from Windows 7 or 8.
  • ATSC TV recordings are not 100% compatible with DVD, and therefore you cannot burn them directly to a DVD.
  • The WinTV-HVR-1265 is AQ certified for use with the Windows 7 Media Center application.

型号

model 01196:

包装内容

  • WinTV-HVR-1265 PCI Express 电视卡
  • 快速使用指南
  • 半高挡板

系统要求

  • 处理器要求 (最低要求):
    • 2.2 GHz Intel P4 或更高
  • Microsoft Windows 10, 8.1, 8, Windows 7 (32 and 64-bit) and Vista.
    Also for Windows Media Center application.
  • 空闲的PCI Express X1 or X16
  • 64MB 以上显卡
  • 声卡

操作手册
